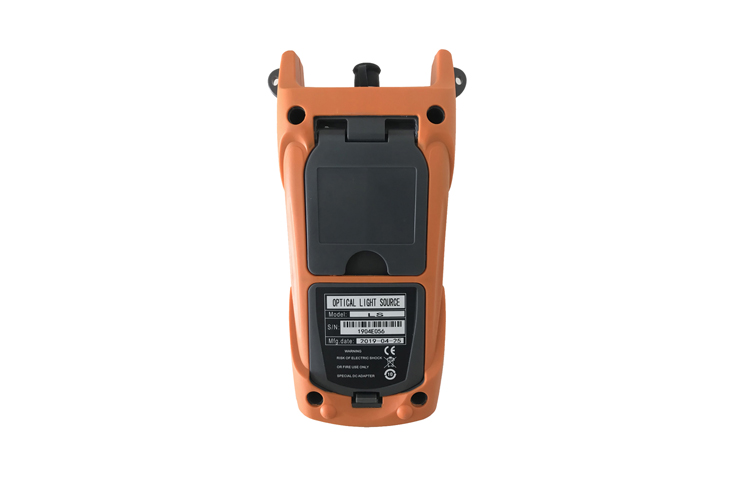

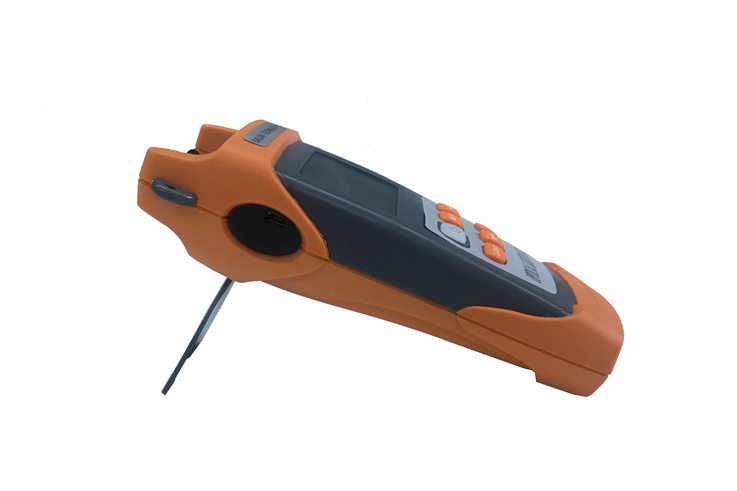

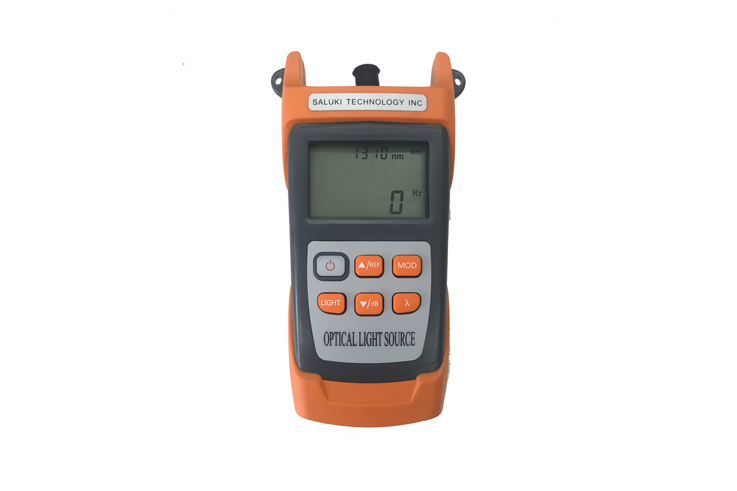

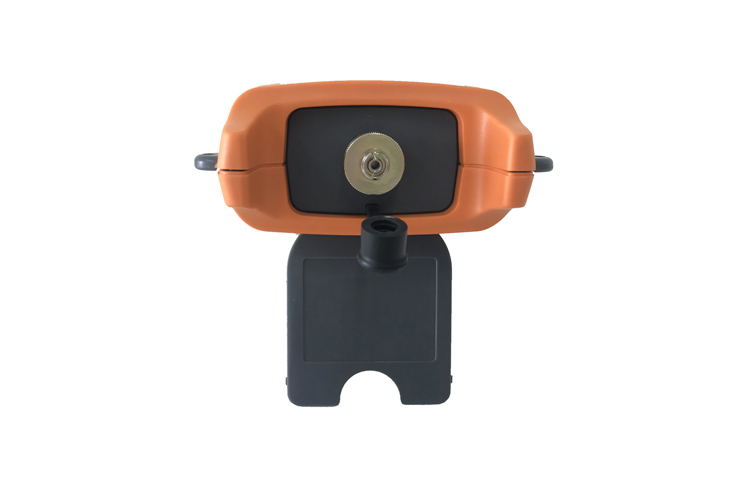

SK500 Handheld Stabilized Laser Source

Inicio actual>Herramientas ópticas

SK500 Handheld Stabilized Laser Source

Información general Especificaciones Ordenar Recursos

SK500 handheld stabilized laser source provides 1 to 4 wavelengths of stable output, and with continuous power adjustable, modulated light output and other functions, backlight intelligent control, design more environmentally friendly energy.

SK500 is mainly for fiber-optic network site installation, acceptance and maintenance of fiber optic cable, optical passive components of the transmission and loss measurement needs of the new design and development of products, with hand-held optical power meter use, can provide you with a fiber network precision test solution.

Key Features

Wavelength 850/1300/1310/1490/1550nm, customized 1625/1650nm

Support CW/270Hz/1kHz/2kHz modulation output

Optional 0 - 6dB adjustable output power (step 1dB)

Support automatic shutdown and user self-calibration

Backlight intelligent control

USB interface, portable battery charging

Wavelength
Fiber Type	62.5/125um, 9/125um
Optical Connector	FC/SC/ST
Laser Type	FP-LD
Output Power	≥ -5dBm
Stability	± 0.02dB / 8h
Modulation Mode	CW/270Hz/1kHz/2kHz
Power Regulation	0 – 6dB, 1dB step
Automatic Shutdown Time	10 min
Continuous Working Time	≥ 72h (LS function)
Power Supply	Three AA batteries
Dimension	100 (W) × 186 (H) × 50 (D) mm
Weight	140g

Main Machine

Module No.	Item	Description
SK500-1	Stabilized Laser Source	1310/1550 nm, SM, Dry battery
SK500-2	Stabilized Laser Source	850/1300 nm, MM, Dry battery
SK500-3	Stabilized Laser Source	850/1300/ 1310/1550±20 nm, SM&MM, Dry battery
SK500-4	Stabilized Laser Source	1310/1490/1550 nm, SM, Dry battery
