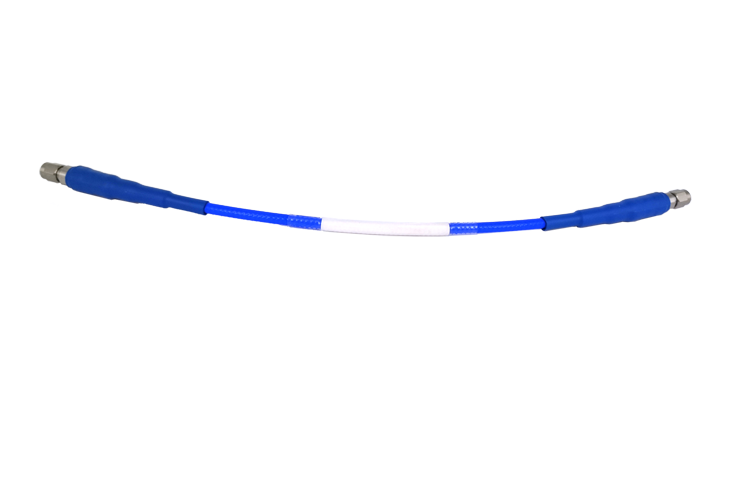

Saluki Phase and Amplitude stable RF Testing cable has the characteristics of good flexibility, light weight and small space. It can be used for any high frequency signal transmission between systems or instruments where low loss and stability are critical. SCA cables are available with a wide range of connectors offering excellent specifications.
Phase and Amplitude Stable RF Test Cable
Key Features
Frequency range: DC - max. 26.5GHz
Mulitiple connector types
Mulitiple armour options
Low loss and stability flexible cable
-
Armour

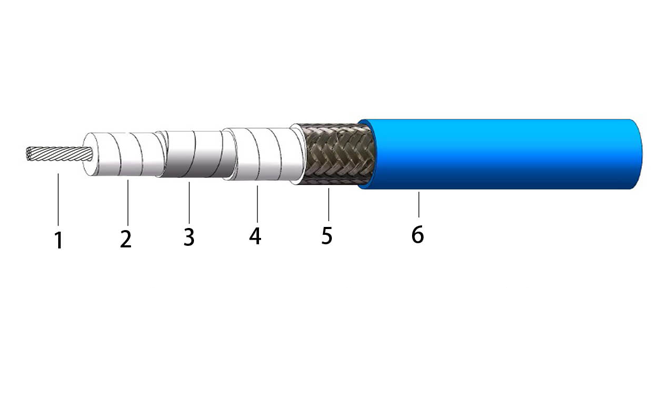

1 Center Conductor/Silver Plated Copper(Stranded)
2 Dielectric/Low Density PTFE
3 Inner Shield/Silver Plated Copper Tape
4 Interlayer/PTFE, Wrapped
5 Outer Braid/Silver Plated Copper Wires
6 Outer Jacket/FEP, Blue
-
Naming Rules
Sample:
SCA9696A-B9RU24
SCA:Saluki Cable Assemblies
9696:SMA/SMA
A:M-M
B9:Cable Type
RU:Armour
24:Length(inch)
| Frequency Range | DC – 26.5GHz |
| Connector A | SMA (M) |
| Connector B | SMA (M) |
| Length | SCA9696A-B9NL24: 24 inch SCA9696A-B9NL36: 36 inch SCA9696A-B9NL48: 48 inch |
| Insertion Loss | SCA9696A-B9NL24: 1.33 SCA9696A-B9NL36: 1.81 SCA9696A-B9NL48: 2.30 |
| VSWR | 1.25 |
| Amplititude Stability | ±0.1 |
| Phase Stability | ±8° |
SCA9696A-B9NL24
| Frequency Range | Connector | Length |
| DC - 26.5GHz | SMA (M) | 24 inch |
SCA9696A-B9NL36
| Frequency Range | Connector | Length |
| DC - 26.5GHz | SMA (M) | 36 inch |
SCA9696A-B9NL48
| Frequency Range | Connector | Length |
| DC - 26.5GHz | SMA (M) | 48 inch |
