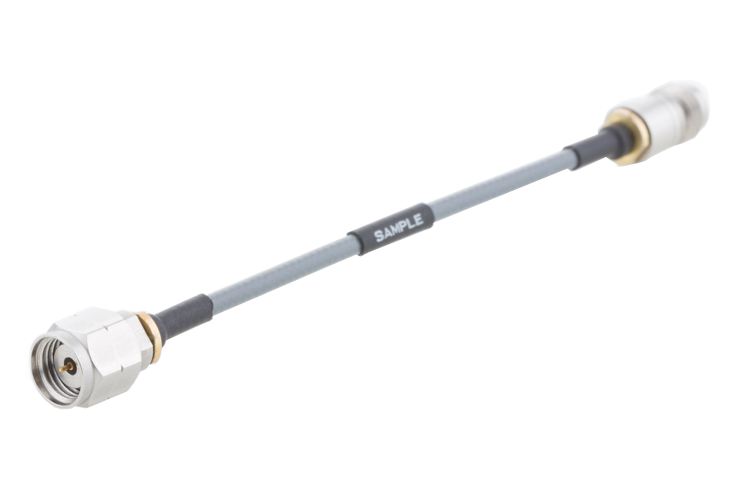

Saluki Low Loss, Phase and Amplitude stable Flexible cable has the characteristics of good flexibility, light weight and small space. It can be used for any high frequency signal transmission between systems or instruments where low loss and stability are critical. SCA cables are available with a wide range of connectors offering excellent specifications.
Low Loss, Phase and Amplitude Stable Flexible Cable
Key Features
Frequency range: DC - 67GHz
1.85mm (M) connector type
Low loss and stability flexible cable
-
Naming Rules
Sample:
SCA9696A-B9RU24
SCA:Saluki Cable Assemblies
9696:SMA/SMA
A:M-M
B9:Cable Type
RU:Armour
24:Length(inch)
| Frequency Range | DC – 67GHz |
| Connector A | 1.85mm (M) |
| Connector B | 1.85mm (M) |
| Length | SCA1616A-J6S12: 12 inch SCA1616A-J6S24: 24 inch SCA1616A-J6S36: 36 inch |
| Insertion Loss | SCA1616A-J6S12: 2.63 SCA1616A-J6S24: 4.43 SCA1616A-J6S36: 6.24 |
| VSWR | 1.35 |
| Amplititude Stability | ±0.15 |
| Phase Stability | ±7° |
SCA1616A-J6S12
| Frequency Range | Connector | Length |
| DC - 67GHz | 12 inch |
SCA1616A-J6S24
| Frequency Range | Connector | Length |
| DC - 67GHz | 24 inch |
SCA1616A-J6S36
| Frequency Range | Connector | Length |
| DC - 67GHz | 36 inch |
