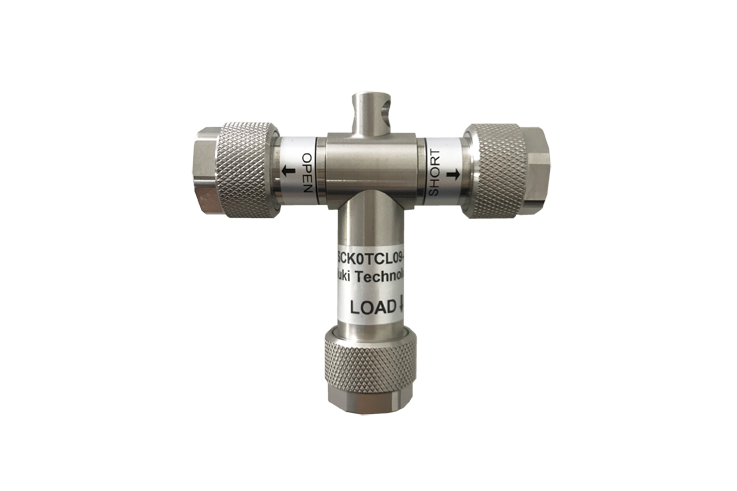

SCK0TCL09-N mechanical calibration kit providing full open, short and load reflection standards for accurate measurements.
Mechanical Calibration Kit, 9GHz, Type-N, 3-in-1 OSL
Key Features
DC to 9GHz frequency coverage
Type-N male or female connector configuration
50 ohm impedance
Application
Site Master
Cable and Antenna Analyzer
Vector Network Analyzer (VNA)
US$ 328 (1-5pcs)
- Download
- SCK0TCL09-N Datasheet
-
Select Module
Add to Cart
Detailed
Technical Specifications
| Model | Name | Frequency | Specifications | List |
|---|---|---|---|---|
| SCK0TCL09-N(M) | Type-N calibration kit
T Type |
DC – 9 GHz | Open: ±1.2° Short: ±1.0° Load: VSWR <1.029 |
N (Male) T type calibration kit |
| SCK0TCL09-N(F) | N (Female) T type calibration kit |
Operation Video
How to Place an Order ?
Common Q&A
-
Q: Can I use it in Keysight VNA?
A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.
-
Q: Can I use it to R&S, Anritsu or other brand VNA?
A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.
-
Q: Can I use it in my Sitemaster or Cable and Antenna Testers?
A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.
-
Q: What is the warranty time?
A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.
-
Q: Who will afford shipping cost for return?
A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.
