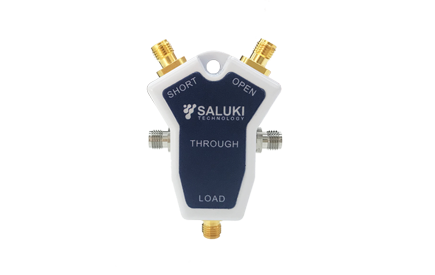

SCK0YTL26-3.5 series VNA Calibration kit is a 4-in-1 mechanical cal kit, which used to calibrate network analyzers for measurements of components with 3.5mm connectors.
Saluki’s VNA calibration kits and open short load circuits offer test equipment coverage for the most popular network analyzer models with 3.5mm/SMA series test port including Agilent® / Keysight®, Anritsu®, Rohde & Schwarz®, Tektronix® and other VNA network analyzers.
DC to 26.5GHz frequency coverage
3.5mm male or female connector configuration
50 ohm impedance
Site Master
Cable and Antenna Analyzer
Vector Network Analyzer (VNA)
Unit Price: $1,020 (1-5pcs)
Within 24h Delivery !
Select Module
Add to Cart| Model | Name | Frequency | Specifications | List |
|---|---|---|---|---|
| SCK0YTL26-3.5(M) | 3.5mm calibration kit
Y Type |
DC – 26.5 GHz | Open: ± 2.0° Short: ± 2.0° Load: VSWR < 1.065Through: VSWR < 1.12 |
3.5mm (Male) Y type calibration kit |
| SCK0YTL26-3.5(F) | 3.5mm (Female) Y type calibration kit |
Q: Can I use it in Keysight VNA?
A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.
Q: Can I use it to R&S, Anritsu or other brand VNA?
A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.
Q: Can I use it in my Sitemaster or Cable and Antenna Testers?
A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.
Q: What is the warranty time?
A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.
Q: Who will afford shipping cost for return?
A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.
