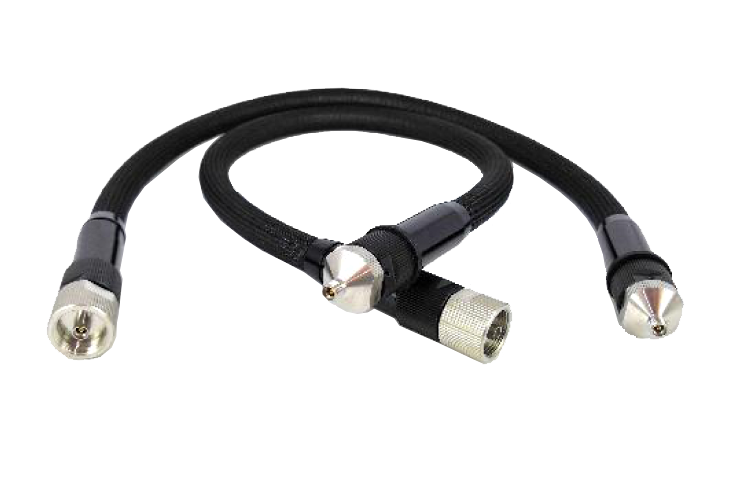

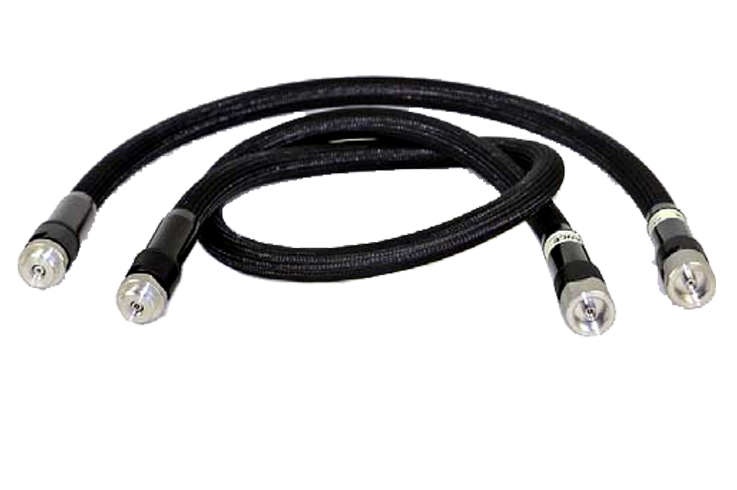

97cm Long Length High Performance VNA Test Cable Assemblies

Saluki SCAVNA series High Performance VNA Test Cable Assemblies are specifically engineered to provide the most precise VNA measurements in laboratory conditions. The SCAVNA series with excellent phase and amplitude stability can achieve high reliable test results with bend, crush and many other testing situations.

Saluki’s cable assemblies maintain excellent insertion loss and VSWR. Our assemblies ensure accurate and repeatable measurements because of their phase and amplitude stability guaranteed with flexure-tested for over 100,000 flex cycles and over 5,000 mating cycles.

Key Features

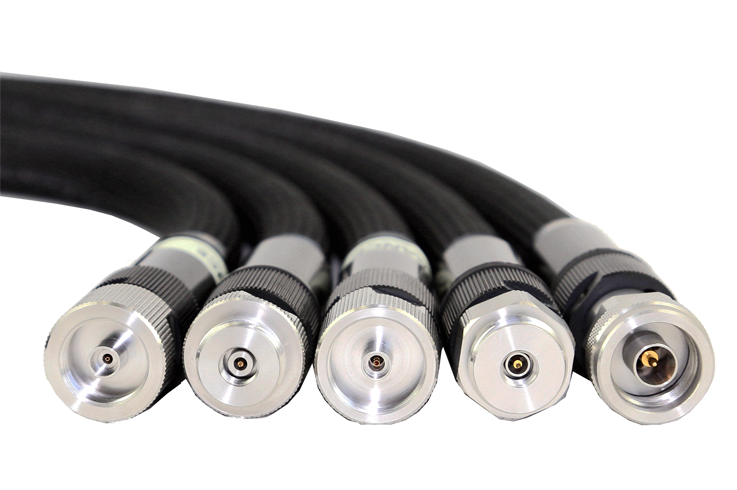

NMD-style ruggedized connectors

Crush resistance greater than 130kgf/cm

Over 100,000 flexures at minimum bend radius

Torque resistance

Virtually zero cable spring back

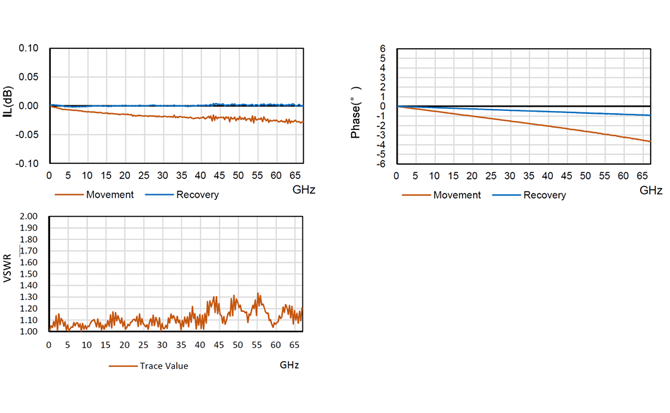

  • Typical VSWR, Insertion Loss, Phase Stability Performance

    *Under condition: Data tested from 1.85mm SCAVNA test cable, at bent 360° with 10cm diameter.

Saluki P/N

SCAVNA26FF-(3.5/3.5)-0.97

SCAVNA26FM-(3.5/3.5)-0.97

SCAVNA50FF-(2.4/2.4)-0.97

SCAVNA50FM-(2.4/2.4)-0.97

Frequency Range

SCAVNA26FF-(3.5/3.5)-0.97:DC – 26.5GHz

SCAVNA26FM-(3.5/3.5)-0.97:DC – 26.5GHz

SCAVNA50FF-(2.4/2.4)-0.97:DC – 50GHz

SCAVNA50FM-(2.4/2.4)-0.97:DC – 50GHz

VNA End

SCAVNA26FF-(3.5/3.5)-0.97:NMD 3.5mm Female

SCAVNA26FM-(3.5/3.5)-0.97:NMD 3.5mm Female

SCAVNA50FF-(2.4/2.4)-0.97:NMD 2.4mm Female

SCAVNA50FM-(2.4/2.4)-0.97:NMD 2.4mm Female

DUT End

SCAVNA26FF-(3.5/3.5)-0.97: 3.5mm Female

SCAVNA26FM-(3.5/3.5)-0.97:NMD 3.5mm Male

SCAVNA50FF-(2.4/2.4)-0.97:2.4mm Female

SCAVNA50FM-(2.4/2.4)-0.97:NMD 2.4mm Male

VSWR

SCAVNA26FF-(3.5/3.5)-0.97:1.25

SCAVNA26FM-(3.5/3.5)-0.97:1.25

SCAVNA50FF-(2.4/2.4)-0.97:1.3

SCAVNA50FM-(2.4/2.4)-0.97:1.3

Insertion Loss

SCAVNA26FF-(3.5/3.5)-0.97:< 1.8dB

SCAVNA26FM-(3.5/3.5)-0.97:< 1.8dB

SCAVNA50FF-(2.4/2.4)-0.97:< 3dB

SCAVNA50FM-(2.4/2.4)-0.97:< 3dB

Phase Stability

SCAVNA26FF-(3.5/3.5)-0.97:< ±2°

SCAVNA26FM-(3.5/3.5)-0.97:< ±2°

SCAVNA50FF-(2.4/2.4)-0.97:< ±3°

SCAVNA50FM-(2.4/2.4)-0.97:< ±3°

Amplitude Stability

< ±0.05dB

Shielding Effectivity

> 100dB

Cruch Resistance

> 130kgf/cm

Length

97cm (38.2 inch)

Impedance

50Ω
