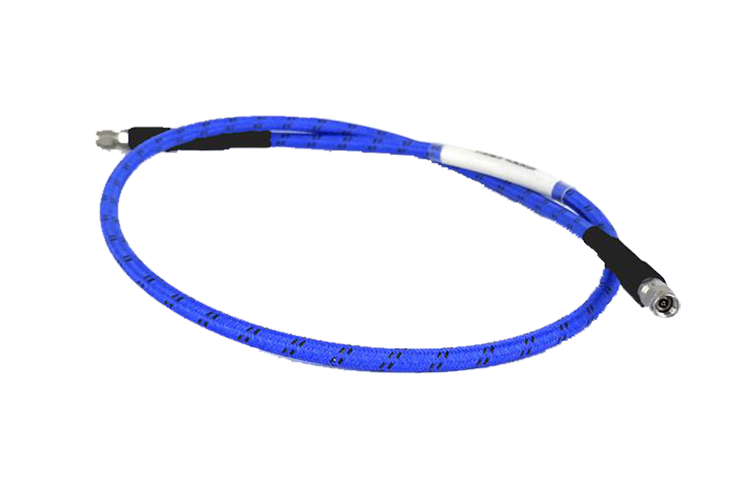

Saluki Phase and Amplitude stable RF Multilayer Armour cable has the characteristics of good flexibility, light weight and small space. It can be used for any high frequency signal transmission between systems or instruments where low loss and stability are critical. SCA cables are available with a wide range of connectors offering excellent specifications.
Phase and Amplitude Stable RF Multilayer Armour Cable
Key Features
Frequency range: DC - 67GHz
Mulitiple connector types
Mulitiple armour options
Low loss and stability flexible cable
-

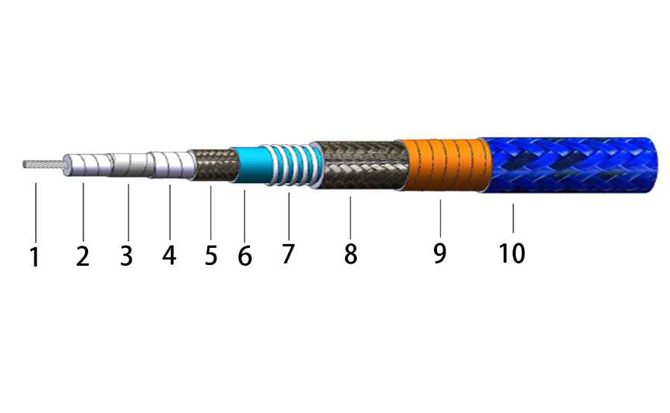

Armour
1 Center Conductor/Silver Plated Copper(Standard)
2 Dielectric/Low Density PTFE
3 Inner Shield/Silver Plated Copper Tape
4 Interlayer/PTFE, Wrapped
5 Inner Braid/Silver Copper Wires
6 Inner Jacket/FEP, Blue
7 Spring Member/Stainless Steel Wire
8 Outer Braid/Silver Plated Copper Wires
9 Waterproof Layer/PI+PTFE
10 Outer Jacket/PTFE Wire, Blue and Black
-
Naming Rules
Sample:
SCA9696A-B9RU24
SCA:Saluki Cable Assemblies
9696:SMA/SMA
A:M-M
B9:Cable Type
RU:Armour
24:Length(inch)
| Frequency Range | DC – 67GHz |
| Connector A | 1.85mm (M) |
| Connector B | 1.85mm (M) |
| Length | SCA1616A-B6RU24: 24 inch SCA1616A-B6RU36: 36 inch SCA1616A-B6RU48: 48 inch |
| Insertion Loss | SCA1616A-B6RU24: 4.43 SCA1616A-B6RU36: 6.24 SCA1616A-B6RU48: 8.05 |
| VSWR | 1.35 |
| Amplititude Stability | ±0.1 |
| Phase Stability | ±7° |
SCA1616A-B6RU24
| Frequency Range | Connector | Length |
| DC - 67GHz | 1.85mm (M) | 24 inch |
SCA1616A-B6RU36
| Frequency Range | Connector | Length |
| DC - 67GHz | 1.85mm (M) | 36 inch |
SCA1616A-B6RU48
| Frequency Range | Connector | Length |
| DC - 67GHz | 1.85mm (M) | 48 inch |
